توضیحات

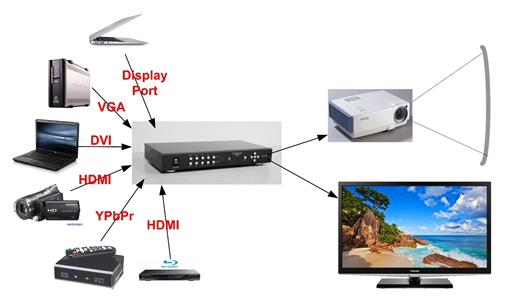

- تبدیل انواع ورودی های YUV, VGA, SOG, DualLink DVI, DVI-D, HDMI and DisplayPort به DVI-D, HDMI or VGA
- پشتیبانی از VESA, NTSC, PAL and SCAN
- ماکزیمم رزولوشن ورودی : ۳۸۴۰ در ۱۰۸۰ با فرکانس ۶۰ هرتز
- تغییر رزولوشن ورودی VGA به ۲۰۴۸ در ۱۰۸۰ یا فول اچ دی
- پشتیبانی از فرکانسهای ۲۴ ، ۲۵ ، ۵۰ ، ۶۰ ، ۱۰۰ و ۱۲۰ هرتز
- پشتیبانی از فرمت بلوری


مشخصات فنی
- Convert YUV, VGA, SOG, DualLink DVI, DVI-D, HDMI and DisplayPort inputs to DVI-D, HDMI or VGA output.
- Support VESA, NTSC, PAL and SCAN input formats.
- Maximux input resolution: 1080p/120Hz, 4k/2k @30Hz or 3840×1080@60Hz without compression.
- Selectable output resolution from VGA up to 1080p, WUXGA (1920×1200) or 2048×1080
- Support 24/25Hz, 50Hz ,60Hz and 100/120Hz output timings.
- Frame lock & Free Run function to provide more flexible applications.
- Free Run mode setting to get glitch less image while input timing or source change.
- True 10-bits processor: 3D motion adaptive de-interlace, low angle smooth algorithm and 3:2/2:2 film mode processing.
- High end image scaling up/down and format conversion.
- Image flip, rotation, warp and geometry alignment.
- Professional Edge blending function.
- PIP (including 3D PIP) and 16:9 / 2.35:1 aspect ratio conversion.
- Built-in video wall control function to split, crop, magnify, overlap pixel setting and assign location.
- Image stacking to increase the brightness on flat or curved screen.
- Support Blue Ray 1080p @24Hz frame packed for Active (shutter) 3D system.
- Support HDMI 1.4 standard 3D formats from Blue Ray, Media Player and PC for passive 3D display
