مشخصات فنی
|
| True 10 bits processing |
Video processor |
Main functions |
| Dual |
processing channel |
| Yes |
Passive 3D |
| Yes |
Active 3D |
| Yes |
Video Wall |
| ۲x HDMI, 1x DVI-I (Support DualLink DVI/HDMI/VGA) |
Video Input Ports |
Input & Output |
| ۲x HDMI for RH/LH output |
Video Output |
| PC audio Jack, HDMI audio |
Audio Input |
| Analog (RH/LH), HDMI audio |
Audio Output |
| YPbPr adapter is required |
Support YPbPr video via VGA input port |
| Yes |
Input resolution up to 1080p @120Hz, 3840×1080 @60Hz & 4k/2k @30hz without compressing |
| ۱۹۲۰x1200 or 2048×1080 |
Max. output resolution |
| Yes |
۵۰ Hz input and output without rate conversion |
| Yes |
HDCP key for DVI/HDMI |
| Yes |
High speed HDMI 1.4a receiver and output transmitter |
| Yes |
Automatically 3D formats detection |

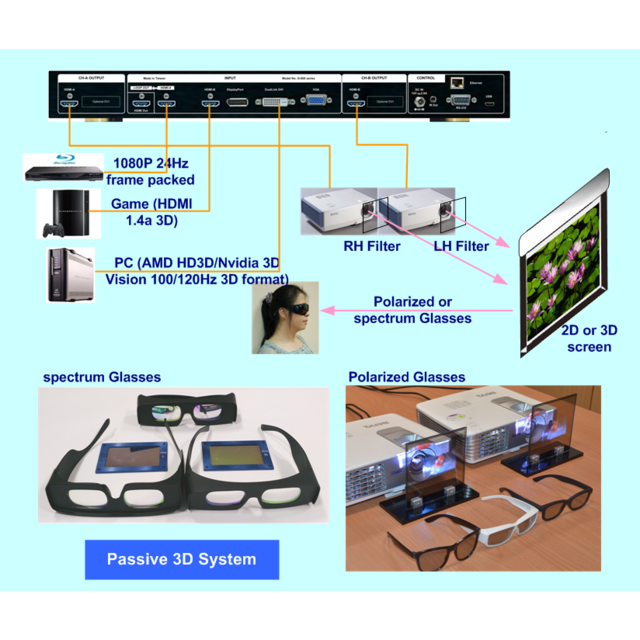

Passive 3D Display |
| Yes |
Support Side by Side 3D format |
| Yes |
Support Top-Bottom 3D format |
| Yes |
Support Line Interleave 3D format |
| Yes |
Support Blue Ray 1080P@24 Hz 3D format |
| Yes |
Support Sony camcorder 1080i packing 3D |
| Yes |
Support 3840×1080 side by side full HD 3D input for RH/LH full HD output W/O quality reduction |
| Yes |
Support sequential 3D for passive 3D display |
| Yes |
Support NVidia 1080p 120Hz 3D for passive 3D display |
| Yes |
RH/LH output swappable |
| Yes |
Perfect Sync for zero latency in RH/LH channel |
| Yes |
۲٫۳۵:۱ movie on 16:9 screen without black borders |
| Yes |
Support 3840×1080 side by side input with RH/LH 1080p output W/O quality reduction |
| Yes |
Support Blue Ray 1080P @24Hz packed 3D for 120Hz active 3D display |
Active 3D display |
| Yes |
Convert 1080p 120Hz into XGA/720P 120Hz output for active 3D display |
| Yes |
۱۰ bits 3D de-interlace, smooth edge algorithm and 3:2/2:2 film mode detecting and recovery |
Video processing |
| Yes |
High quality video and graphics scaling up and scaling down |
| Yes |
Frame rate and format conversion |
| Yes |
Color management (RGB discrete adjustment, Hue, saturation, sharpness, contrast, brightness, preset color modes) |
| Yes |
Full function Front Panel Keypads & IR Remote control |
System control |
| Option |
Cabled IR Receiver Extender (up to 20 meters) |
| Yes |
Box ID for independent control through IR or RS-232 |
| Yes |
Embedded RS-232 with DB-9 connector |
| Yes |
ASCII control protocol over RS-232 |
| Yes |
Firmware update via RS-232 connector |
Easy Use |
| Yes |
۵ Profile store and recall for difference display modes |
| Yes |
No fan, no noise, low power consumption |
| Option |
Ear mount bracket in 1U rack |
| Yes |
No PC required, More reliable |
| ۳۰۳ x 155 x 36 mm , 1.4 Kg |
Only Box body, not including remote controller, power supply and packing |
Dimension & weight |
