دستگاهی برای افزایش تعداد ورودی های و افزایش رزولوشن ویدئووال

کنترلر یوزر دستگاهی است که دارای حداکثر 120 ورودی با پورت دلخواه و حداکثر 120 خروجی با همان پورت از نوع ورودی می باشد که به شما قابلیت کنترل و ارسال یک ورودی به یک یا چند خروجی دلخواه را خواهد داد.

به طور مثال کنترلر یوزر مدل US-8H8H چه معنایی دارد ؟
یعنی این کنترلر از پورت و کابلهای HDMI استفاده می نماید و دارای ۸ پورت ورودی از نوع HDMI و ۸ پورت خروجی از نوع HDMI می باشد.

کنترلر یوزر

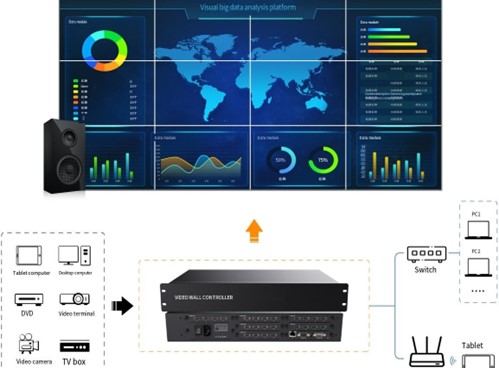

با کنترلر یوزر میتوان تصاویر ورودی را در هر مکان دلخواه ویدئووال با ابعاد دلخواه نمایش داد . قابلیت تصویر در تصویر را نیز پشتیبانی می نماید .

کنترلر یوزر دارای نرم افزار داخلی بوده و میتوان آنرا از طریق شبکه ، موبایل اندروید و آیفون ، انواع تبلت ، کامپیوتر و لپ تاپ مدیریت کرد و قابلیت تعریف کاربر با دسترسی های تعیین شده از طریق ادمین را دارد .

– مبتنی بر تکنولوژی FPGA
– رزولوشن ورودی و خروجی فول اچ دی ، ۴K -30Hz و ۴K-60Hz
– بدون نیاز به کامپیوتر
– امنیت بالا به علت دارا بودن نرم افزار داخلی
– تعریف کاربر با انواع دسترسی
– دخیره و بازیابی جانمایی تصاویر
– قابلیت افزایش تعداد ورودی و خروجی
– قابلیت مش بندی جهت تسهیل در جا نمایی تصاویر

user controller

Functional characteristics

System architecture, plug-in card structure design

  • Adopt pure hardware FPGA architecture, no operating system, high stability;
  • Plug-in design, the main modules such as input and output boards and control boards adopt plug-in design, which is convenient for expansion and maintenance;
  • Supports matrix switching, integrates matrix function within the processor, and supports a single signal source to open multiple windows for simultaneous display.
  • Customized user scenarios, 2,000 user-defined scenarios, support quick scene switching and one-click call.
  • Support multiple groups of screen wall functions
  • Supports third-party serial port devices such as custom protocol control ring exit control screen

Input and output characteristics

  • Support audio function, support embedded audio input and output, support independent audio output
  • Supports automatic detection of input signal, real-time detection of whether there is signal access to each input port, and status indication of input board indicator lamp and software
  • Supports arbitrary window opening, roaming and superimposing of signal pictures
  • Supports up to 8 layers on a single screen, and a single card supports sharing 8 windows
  • Support output port mapping to realize blind insertion.
  • It supports seamless switching, and the device integrates a high-definition signal processing mechanism to ensure that there is no delay, no blue screen, no black screen and other intermediate transition states during signal switching.
  • It supports true 60H z image input and output processing, and adopts RGB444 lossless processing internally to ensure 100% image restoration without color cast and distortion.

Support WEB control

  • Standard WEB cross-platform control

Customize logo, software name, support equipment automatic rotation function, multi-terminal real-time synchronous operation function

  • Support simultaneous operation of multiple users and different terminals, and synchronize data in real time

Supports cross-platform control of various operating systems such as Kirin, Hongmeng, Windows, iOS, Android, and Linux

  • Supports custom protocol control, ring-out control screen and other third-party serial port devices
  • Upgrade and backup function, support device data import and export, and realize data backup function
  • Supports automatic scheduled rotation of scenes. You can choose whether each scene participates in automatic rotation, which is convenient for applications in monitoring and exhibition fields
  • It supports automatic timing rotation of channels. You can select multiple inputs for automatic timing switching at a certain input without affecting the splicing and picture of other output interfaces.

۴K input features

  • Supports 1 HDMI2.0/DP1.2 input on a single board, or 2 HDMI1.4 inputs
  • Supports built-in audio input
  • Supports 4K60 and 4K30 mode switching
  • Support 3840×2160 @ 60Hz resolution input, support custom resolution input

-Limit width 7680, limit height 7560

Support IP decoding

  • IP stream real-time decoding, a single network port supports up to 36 channels of D1, 18 channels of 720P, 9 channels of 1080P, and 2 channels of 4K decoding.
  • Supported protocols: RTSP, RTMP, ONVIF and other standard protocols, supporting network camera access of different brands and resolutions
  • Supports video encoding formats: H.264, H.265
  • Support PTZ control
  • Support decoding echo
  • Support Hikvision DVR and NVR video playback
  • Supports WEB cross-platform control, and supports fast operation switching between tablets and mobile phones
  • Supports multi-network segment decoding, and the decoding server can add multiple different network segments for communication
  • Supports scene, grouping, multi-screen automatic patrol, single-screen automatic patrol
